1 Product features:
The single-breakpoint quick-action structure ensures the reliability of use; the strictly controlled automatic production line ensures the stable performance of the product; the advanced production technology ensures the consistency of the action and the repetitive temperature of the reset.
2 Main application:
It is suitable for overheating protection and temperature control of general household and similar appliances such as air conditioners, dishwashers, electric hot water bottles, washing and drying equipment, heaters, electric ovens, microwave ovens, etc.

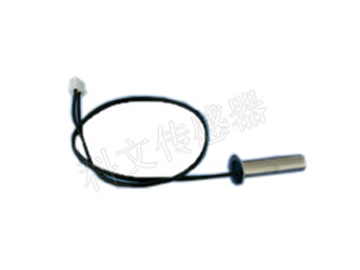

3 Product appearance and structure:
Various product structures can be provided, and can be customized according to customer requirements.
4 Characteristic parameters:
Rated temperature: 30-155℃, every 5℃; tolerance: ±1℃, ±2℃, ±3℃, ±5℃, ±10℃
Contact capacity: 10K (4A/12VDC 3A/24VDC 3A/120VAC 2A/250VAC)
Electricity life: more than 10,000 times
Response performance: quick-acting bimetallic, fast response
Protection mode: double protection of current and temperature
Contact form: normally closed, normally open
Internal resistance: usually less than 50mΩ ^smaller than 25 mΩ
Note: It can be specially manufactured according to user requirements, such as rated disconnect temperature, reset temperature, lead wire, terminal, size, installation form, etc.
